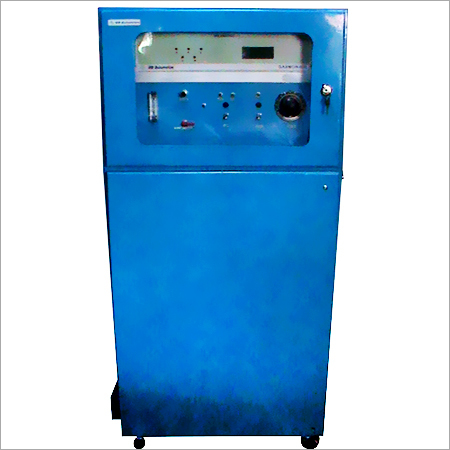

Stack Gas Analyzer
10000 INR/Unit
Product Details:
- Features Auto Calibration, Data Logging, Over Range Alarm
- Display Type Digital LCD
- Measuring Range Multi-Gas, CO/NOx/SO2/O2
- Mounting Type Wall/Table Mount
- Interface Type RS232/USB
- Humidity 5-95% RH (non-condensing)
- Frequency 50 Hz
- Click to View more
X
Stack Gas Analyzer Price And Quantity
- 01 Unit
- 10000.00 - 30000.00 INR/Unit
- 10000 INR/Unit
Stack Gas Analyzer Product Specifications
- Auto Calibration, Data Logging, Over Range Alarm
- RS232/USB
- Wall/Table Mount
- Digital LCD
- Multi-Gas, CO/NOx/SO2/O2
- 50 Hz
- 5-95% RH (non-condensing)
- 0-50C Operating
- Emission Monitoring, Industrial Stack Analysis
- 1 (Single probe)
- 1/4 inch NPT
- Continuous Monitoring
- CO: 0-5000 ppm, NOx: 0-5000 ppm, SO2: 0-5000 ppm, O2: 0-25%
- 230 V AC, 50 Hz
- Fast Analysis (<20 sec) per sample
- 300 mm
- Max 2 Bar
- Fits standard stack probe
- <20 seconds
- Digital/Automatic
- Industrial, Laboratory
- Automatic
- 2% of Full Scale
- Stack Gas Analyzer
- 230V AC
- 10 kg
- 1 ppm for CO/NOx/SO2, 0.01% for O2
Stack Gas Analyzer Trade Information
- 2 Unit Per Day
- 4 Days
- Yes
- Contact us for information regarding our sample policy
- All India
Product Description
We are counted among the most reliable manufacturers and suppliers of Stack Gas Analyzer. We are backed by a team of experts of the industry who guide us through the process of manufacturing. These analyzers are made of quality assured material obtained from trustworthy sources. Mainly used for measuring measure Fuel Efficiency, Excess Air, Oxygen etc in Stack / Duct for Exhaust Gas of Furnace & Boiler, this analyzer has a sturdy build quality and outputs accurate results. Besides, we make these Stack Gas Analyzers available for our clients at most affordable prices.
Comprehensive Emission Monitoring
This analyzer delivers precise readings of multiple gases, including carbon monoxide, nitrogen oxides, sulfur dioxide, and oxygen. It is engineered for reliability in industrial stacks and laboratory settings, ensuring accurate emission monitoring for regulatory compliance and process optimization. Auto-calibration and fast response times further enhance its operational efficiency, making it a valuable tool for continuous and spot monitoring tasks.
User-Friendly and Durable Design
With a large 4-inch digital LCD display and simple automatic controls, the Stack Gas Analyzer is easy to operate. Its IP54 protection safeguards against dust and moisture, while the inbuilt rechargeable battery allows up to 2 hours of use during power interruptions. The analyzers robust construction and digital/automatic control mode ensure consistent performance in demanding applications.
FAQs of Stack Gas Analyzer:
Q: How do I calibrate the Stack Gas Analyzer?
A: Calibration can be performed either manually or automatically using standard gases. The analyzer supports easy calibration procedures to ensure accurate results, and auto-calibration features save time during routine maintenance.Q: What is the recommended process for using this analyzer for stack emission monitoring?
A: To use the analyzer, connect the probe to the stack, set parameters via the digital display, allow a warm-up time of less than 5 minutes, and initiate sampling. Fast analysis provides results in under 20 seconds, and readings are automatically logged for later review.Q: What types of gases can the analyzer measure and in what ranges?
A: The analyzer can measure CO, NOx, and SO2 each from 0 to 5000 ppm, and O2 from 0 to 25%. Its high accuracy (2% of full scale) and fine resolution (1 ppm for gases, 0.01% for O2) ensure precise multi-gas analysis.Q: Where can this analyzer be installed or mounted within an industrial facility?
A: This device is designed for flexible installation, supporting both wall and table mounting options. Its IP54 protection allows for operation in various indoor industrial or laboratory environments.Q: What are the key benefits of using this Stack Gas Analyzer in an industrial setting?
A: Key benefits include rapid and accurate multi-gas analysis, high data storage capacity, ease of calibration, reliable activation of visual and audible alarms, and robust operation in rigorous industrial conditions with minimal maintenance needs.Q: When should the data storage be downloaded or backed up?
A: It is advisable to regularly download or back up data once storage approaches capacity (100,000 readings) or after each monitoring campaign. This ensures data integrity and readiness for further analysis or compliance reporting.Q: How does the analyzer handle high humidity or fluctuating temperatures?
A: The device is engineered to operate within 595% RH (non-condensing) and a temperature range of 050C. Its rugged build and IP54 rating protect internal components, ensuring stable performance even in variable industrial environments.Tell us about your requirement
